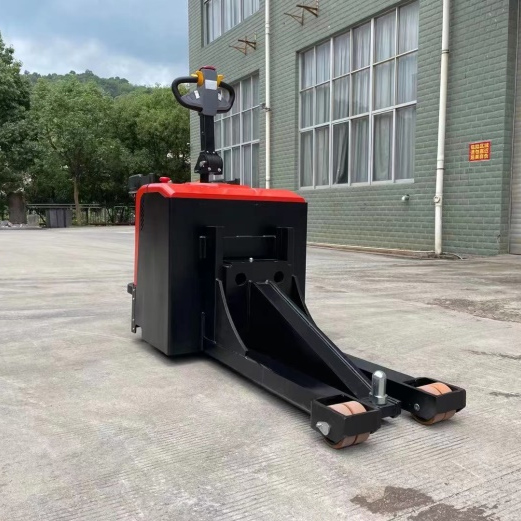

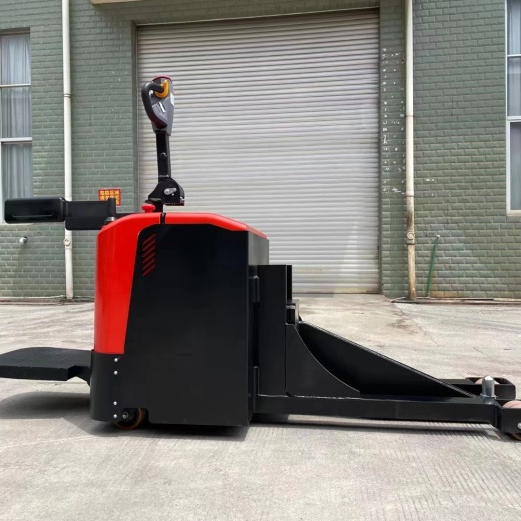

Textile Industried Ectric Tractor Stand-up Driving
  • Textile Industried Ectric Tractor Stand-up DrivingTextile Industried Ectric Tractor Stand-up Driving
  • Textile Industried Ectric Tractor Stand-up DrivingTextile Industried Ectric Tractor Stand-up Driving
  • Textile Industried Ectric Tractor Stand-up DrivingTextile Industried Ectric Tractor Stand-up Driving

Textile Industried Ectric Tractor Stand-up Driving

Buy Discount The Textile Industried Ectric Tractor Stand-up Driving with Free Sample made in China. AMOI Yunsheng is a The textile industried Electric Tractor manufacturer in China. We have been specialized in The textile industried Electric Tractor for many years. Our products have a good price advantage and cover most of the European and American markets. We look forward to becoming your long-term partner in China.

Send Inquiry

Product Description
With years of experience in production The Textile Industried Ectric Tractor Stand-up Driving, AMOI Yunsheng can supply a wide range of The Textile Industried Ectric Tractor Stand-up Driving. High quality The Textile Industried Ectric Tractor Stand-up Driving can meet many applications, if you need, please get our online timely service about The Textile Industried Ectric Tractor Stand-up Driving. In addition to the product list below, you can also customize your own unique The Textile Industried Ectric Tractor Stand-up Driving according to your specific needs.
The Textile industried Electric Tractor




This is a product specially desgned for the textile industried The beautiful shape and appearance design are more in line with the aesthetics of modern people . And we will offer you the best after-sale service and timely delivery.
This Electeric Tractor divided into two type the walkable driving and stand-up driving  ,Rated traction  weight have 13000LB、11000lb and 6600lb ,If you want to learn more about the paoduct’s features you can look at our operation video

Feature unit
model
CCD6.0FDA
Rated traction weight kg 6000
wheelbase mm 1188
Operation type
stand up driving
Wheels
Wheels type
PU
Wheel quantity Driving wheel/Bearing wheel
1/2/4
Driving wheel size mm φ230*90
Bearing wheel size mm φ130*55
Dimension
Min.fork lowered height mm 170(customizable)
Min.fork highed height mm 340(customizable)
Max.lifting height mm 170
Overall fork width mm 550(customizable)
Fork length mm 750(customizable)
Overall length(With /Without handle) mm 1520
Overall width mm 808
Overall height(With handle) mm 1500
Min.Turning radius mm 1468
Performance
Travel speed,laden/unladen km/h 5.9/4.1(customizable)
Gradeability,laden/unladen % 6/8
Electrical configuration
Drive motor KW AC 2.2
Lift motor KW DC 2.2
Battery voltage / capacity V/Ah 24V/210Ah
Brake
Electromagnetic/Regenerative
Controller
MEGMEET
Weight
Battery weight kg 170
Service weight with battery kg 880
